In the automotive telemetry sector, the instrument cluster is rarely a source of absolute ground truth. While Honda drivers rely on the dashboard for legal compliance, the displayed value is a software-filtered estimation rather than a raw physical measurement. Understanding the 'Honda Speedometer Delta' requires an analysis of international regulatory buffers and mechanical variables.
1. The Engineering of Systematic Bias: ECE-R39 Compliance
Speedometer accuracy is governed by strict legal frameworks. International standards, such as
ECE-R39, stipulate that an indicated speed must never be lower than the true speed. To avoid manufacturer liability, Honda engineers implement a 'positive offset'—a deliberate bias where the display shows a speed higher than reality. This ensures that even with production variances, the dashboard never under-reports velocity.

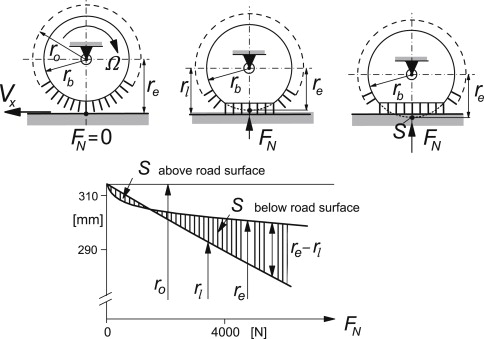

2. The Variable of Static Rolling Radius
Honda vehicles determine speed by sampling the rotation frequency (RPM) of the transmission output shaft or wheel hubs via
Vehicle Speed Sensors (VSS). This calculation relies on a fixed assumption of the tire's circumference. However, the 'Static Rolling Radius' is a dynamic variable influenced by:
*
Tread Degradation: As tires wear, the outer diameter shrinks. A smaller wheel must rotate faster to cover the same distance, forcing the ECU to report an inflated speed.
*
Inflation and Load: Under-inflated tires compress the tire profile, reducing the effective radius and introducing systematic over-reading on the dash.
3. Digital Dash vs. ECU Raw Data

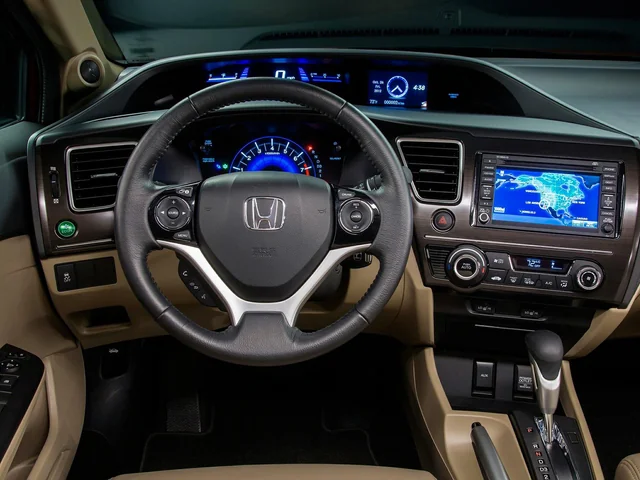

With the transition to fully digital clusters in models like the Honda Accord or CR-V, the display remains a visual representation of sampled data. Interestingly, the car's
Engine Control Unit (ECU) often processes a more accurate speed than what is displayed. By using an

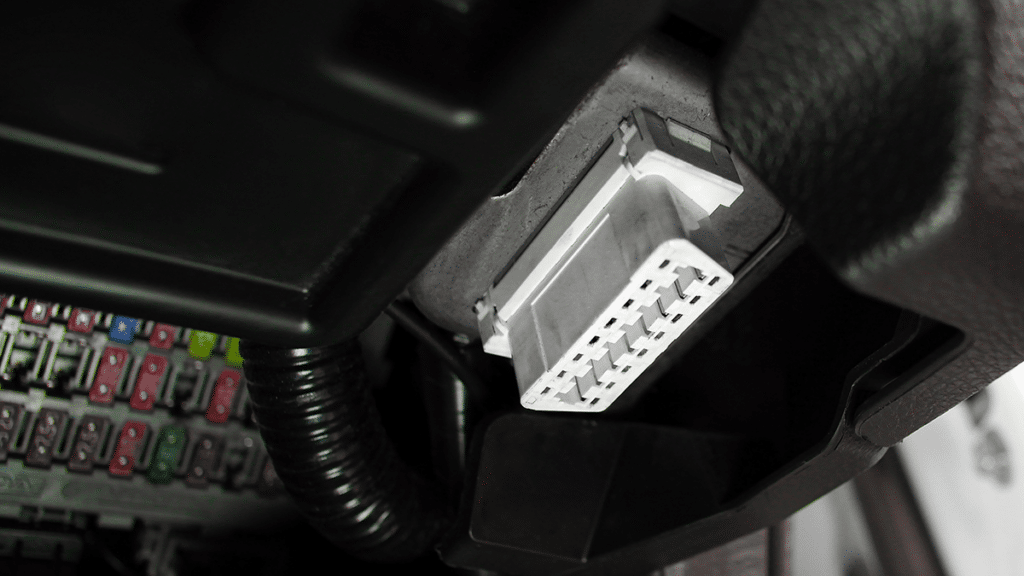

OBD-II automation bridge, users can intercept the raw PID data. You will frequently discover that the ECU's internal value aligns closely with GPS ground truth, proving the dashboard discrepancy is a deliberate software-level modification applied at the
Human-Machine Interface (HMI) layer.
4. Sensor Fusion in Honda Sensing
Modern Honda models utilize
Honda Sensing, an Advanced Driver Assistance System (ADAS) that reconciles data from multiple sources. Unlike the optimistic dashboard, systems like Adaptive Cruise Control (ACC) utilize
Sensor Fusion—combining radar distance-over-time measurements with high-frequency wheel speed pulses. This allows the automated 'brain' of the vehicle to operate on absolute relative velocity rather than the biased numbers shown to the driver.
Conclusion
Are Honda speedometers accurate? They are precisely inaccurate by design. They act as a safety-oriented interface, protecting the driver from legal infractions while accounting for physical wear and tear. For mission-critical tracking or automation, the gold standard remains the integration of raw ECU telemetry with GNSS ground truth to eliminate the inherent deceptions of the dashboard.
