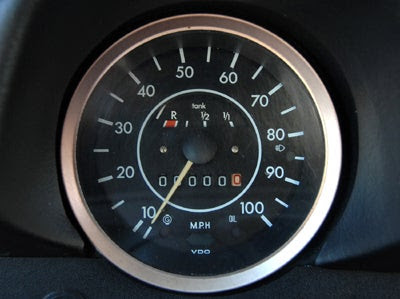

Precision in the Analog Age: A Deep Dive into the 1967 VW Bug Speedometer and Its Legacy

Look, if you’re messing with a '67, you already know the deal. It’s a transition year. Everything is unique, everything is expensive, and most of it is a pain to swap. The speedometer is no exception. It’s the first year for 12V and the first year they integrated the fuel gauge into the pod for US models.



Stop looking for "modern" solutions. This is a VDO mechanical unit. It works on physics, not code.

What’s actually inside

The Drive: A square-tipped cable runs from the driver’s side grease cap through the spindle. If your needle is jumping, don't buy a new speedo yet. Pull the cable, clean out the old gunk, and lube it with graphite. If it's kinked, replace it.

The Speed Cup: The cable spins a magnet. That magnet drags an aluminum cup. No wires, no sensors. Just eddy currents and a tiny hairspring. If you bend that spring while cleaning it, the gauge is toast.

The Odometer: This is where people mess up. The 50-year-old factory grease dries into a hard wax. If you try to force the numbers to roll over, you’ll snap the plastic gear teeth. Guaranteed.

THE IDIOT LIGHTS (Pay attention or buy a new engine)

They’re called idiot lights for a reason. In an air-cooled car, they are your only warning before the engine becomes a boat anchor.

GEN (Red - Left): If this light pops on while you're driving, your fan belt probably snapped. PULL OVER IMMEDIATELY. On a VW, the generator belt also drives the cooling fan. No belt = no air = warped heads in minutes.

OIL (Green/Red - Right): If it flickers at idle, your oil might be thin or the idle is too low. If it stays on at speed, your bearings are starving. Kill the ignition before the rods start knocking.

Troubleshooting & Repairs

1. Fuel Gauge Swings: Check the vibrator (voltage stabilizer) screwed to the back. It’s a small metal can. It’s supposed to pulse to keep a steady 5V. If it's grounded out or dead, your fuel needle will lie to you. 2. Sticky Odometer: Don't use WD-40. It’ll just gum up again. Use rubbing alcohol and a needle to pick out the old wax, then one drop of sewing machine oil or clock oil. 3. Lighting: If the face is dark, check the rheostat on your headlight switch. Usually, the tiny coil inside is corroded. A quick spray of contact cleaner might save you a few bucks.

Swap Meet ID: Don’t get ripped off

Don't buy a '68-up speedo and expect it to look right in your '67 dash.

Face: Must be 90 MPH.

Fuel Window: Bottom center. If there's no window, it's '66 or older (6V).

Stamp: Check the back for the date code (e.g., 12.66 or 4.67).

Warning Lights: You need the 4-light setup: Blue (high beam), Clear (instrument), Red (Gen), and Green (Oil).

Bottom Line

A '67 speedo isn't a "legacy"—it's a tool. It tells you if your engine is about to melt or if you're out of gas. Learn how to read the idiot lights and keep the cable lubed. If you want a digital screen, buy a new car. If you want a Beetle, learn how the mechanical stuff works.
