1. The Short Answer: Regional Regulatory Disparity
In the United States, vehicle inspection criteria are governed at the state level. In rigorous jurisdictions such as New York, Massachusetts, or Pennsylvania, a non-functioning speedometer is a primary safety failure. The logic is rooted in the requirement that a driver must have an accurate, OEM-integrated method of gauging velocity to maintain legal compliance and safe stopping distances. Conversely, in states lacking safety mandates (e.g., Florida), a car may pass because the inspection focus is non-existent or limited to emissions.
2. The Link to Odometer Law and Federal Compliance
A broken speedometer is frequently indicative of a failed Vehicle Speed Sensor (VSS) or a logic error in the Instrument Panel Control (IPC) module. If the speedometer is dead, the odometer typically ceases to accumulate mileage. Under the Federal Odometer Act, failing to maintain a functional odometer or misrepresenting mileage is a federal offense. Inspectors in all states are trained to identify 'frozen' odometers, which can lead to a 'Tamper' or 'Mileage Unknown' brand on the vehicle's title.3. The Automation Loop: Why the Speedometer is Critical

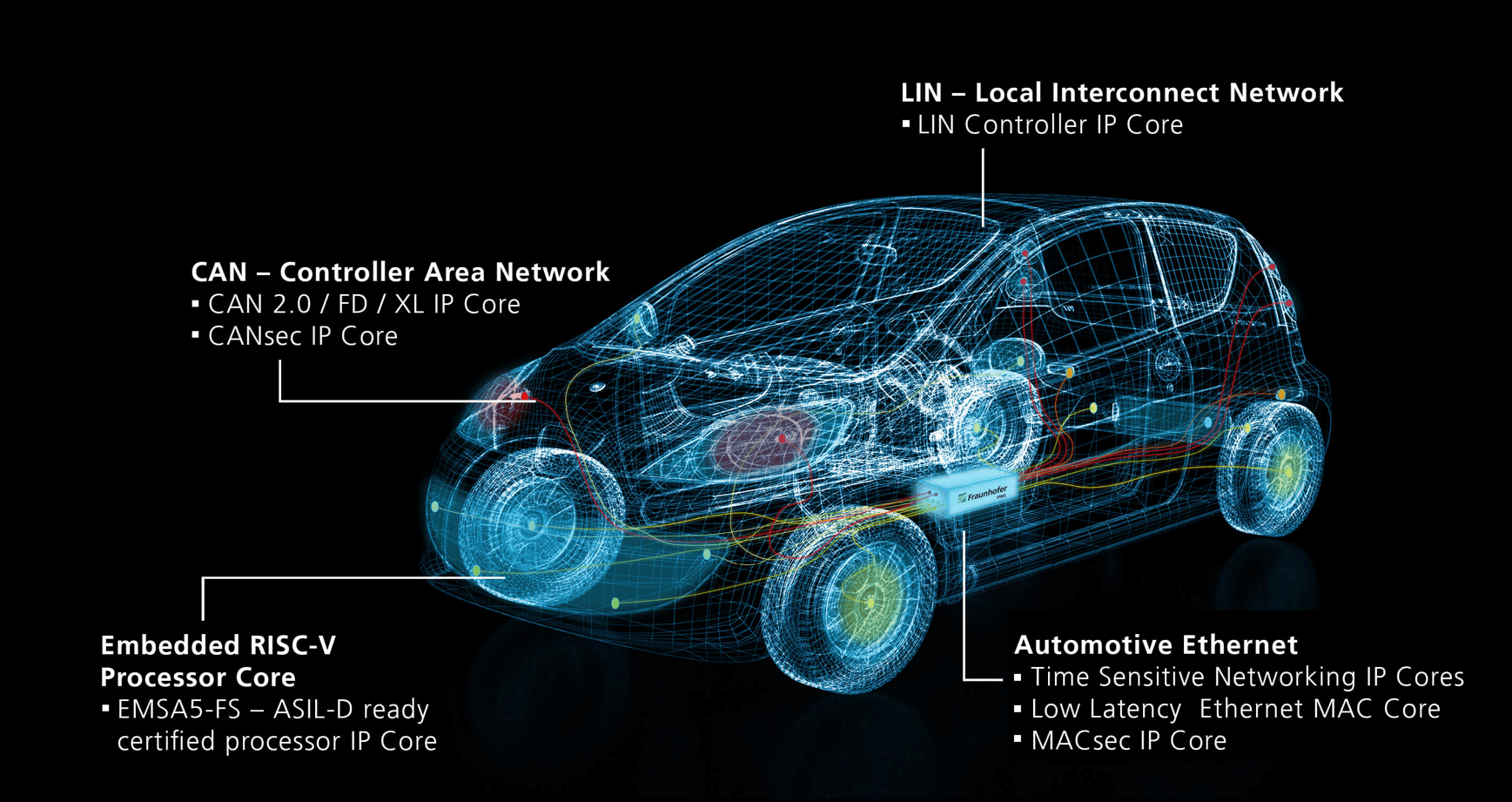

For telemetry specialists, the speedometer is the visual HMI (Human-Machine Interface) for a critical data node. The speed signal is broadcast across the CAN bus and used by several automated subsystems:* Transmission Mapping: Automatic transmissions use the VSS signal to modulate shift solenoids. A failed signal often triggers a Check Engine Light (CEL) and forces 'Limp Mode'. * ABS and ESC: The Anti-lock Braking System and Electronic Stability Control utilize wheel speed data to prevent skidding. If the speed signal is corrupted, these automated safety features are often disabled. * Emissions Failure: In almost all states requiring OBD-II emissions testing, a CEL triggered by a VSS fault (e.g., code P0500) results in an automatic inspection failure, regardless of the physical needle's state.
4. Step-by-Step Engineering Diagnostic
Before authorizing expensive cluster replacements, follow this deterministic diagnostic path: 1. OBD-II Telemetry Validation: Connect a diagnostic scanner to the OBD-II port. Query the 'Vehicle Speed' PID (Parameter ID). If the scanner displays an accurate speed while the dashboard shows zero, the VSS is functional, and the 'bug' is isolated to the IPC module or its power supply.
2. Fuse Integrity Audit: Consult the fuse box diagram. In modern vehicles, a dedicated 10A fuse often protects the instrument cluster logic. A blown fuse is the most common cause of a total 'panel blackout'.
3. Pulse Generation Physics: Inspect the VSS. Located on the transmission output shaft, this Hall Effect sensor counts rotations via magnetic induction. Ferrous contamination on the sensor tip can induce signal noise, corrupting the data pulse sent to the cluster.
Conclusion
While external GPS HUDs are effective temporary aids, they do not satisfy the requirements of a formal state safety inspection, which mandates the functionality of OEM systems. A dead speedometer is more than a display issue; it is a critical data breach in the vehicle's internal network. By identifying the root cause through signal analysis and module diagnostics, engineers can restore the vehicle's deterministic reliability and ensure regulatory compliance.
