Beyond the Needle: Are Speedometers Accurate in Cars or Just Playing Safe?

In the vehicle telemetry sector, the instrument cluster is rarely a source of absolute ground truth. While drivers rely on the speedometer for legal compliance, the displayed value is a software-filtered estimation rather than a raw physical measurement. Understanding the 'Speedometer Delta' requires an analysis of international regulatory buffers and mechanical variables.

1. The Engineering of Systematic Bias: ECE R39

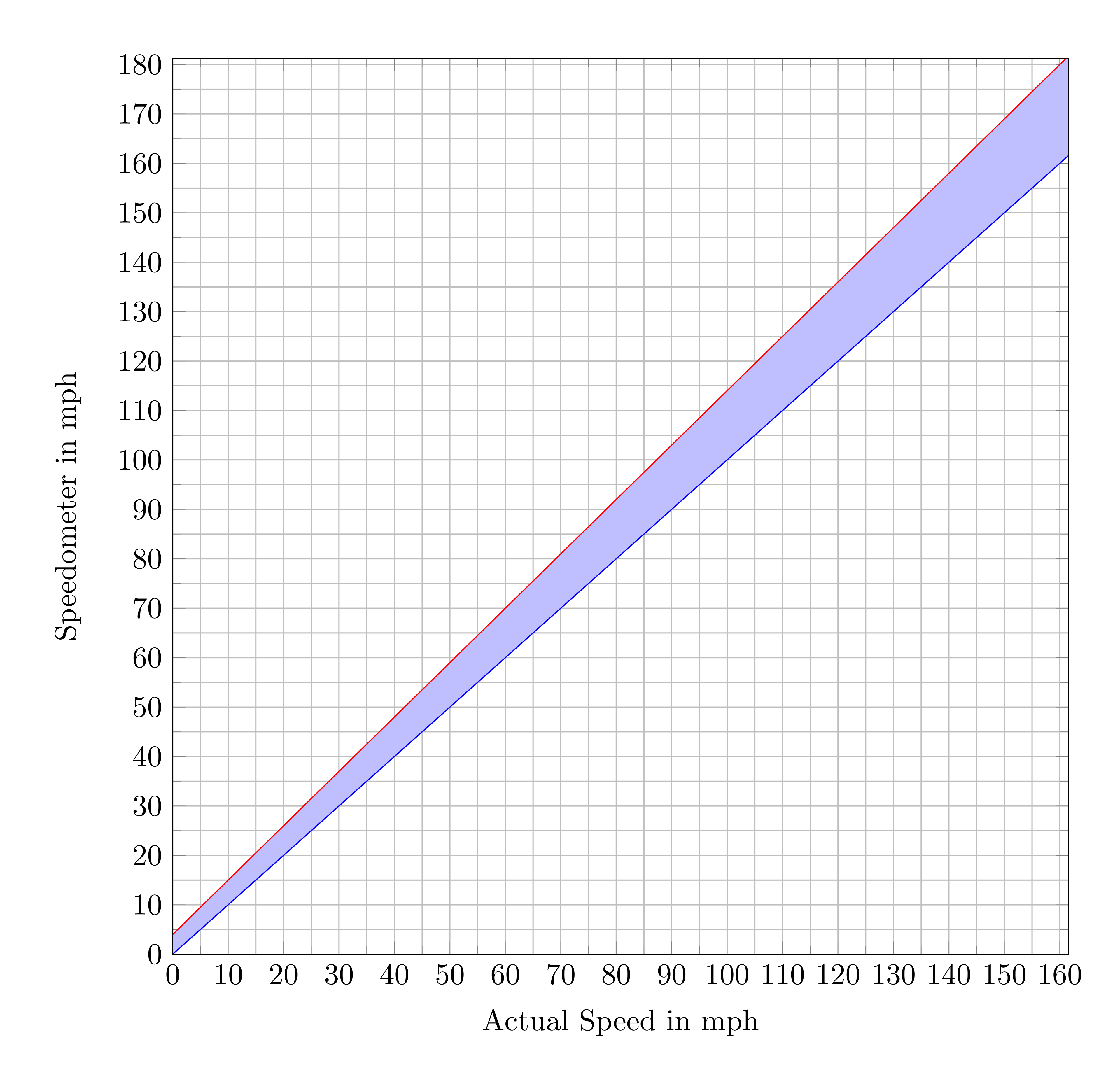

Speedometer accuracy is governed by strict legal frameworks. International standards, such as UN/ECE Regulation 39, stipulate that an indicated speed must never be lower than the true speed. To avoid manufacturer liability, engineers implement a 'positive offset'—a deliberate bias where the display shows a speed higher than reality. The permitted margin can be as high as 10% + 4 km/h, meaning a dashboard indicating 70 mph may represent a true Ground Speed (SOG) of approximately 63-66 mph.

2. The Variable of Static Rolling Radius

Vehicles determine speed by sampling the rotation frequency (RPM) of the transmission output shaft or wheel hubs via Hall Effect sensors. This calculation relies on a fixed assumption of the tire's circumference. However, the 'Static Rolling Radius' is a dynamic variable influenced by:

* Tread Degradation: As tires wear from 10/32" to 2/32", the outer diameter shrinks. A smaller wheel must rotate faster to cover the same distance, forcing the ECU to report an inflated speed. * Inflation and Load: Under-inflated tires or heavy cargo loads compress the tire profile, reducing the effective radius and introducing systematic over-reading on the dash.

3. GNSS Ground Truth: Doppler Shift vs. Sensor Pulse

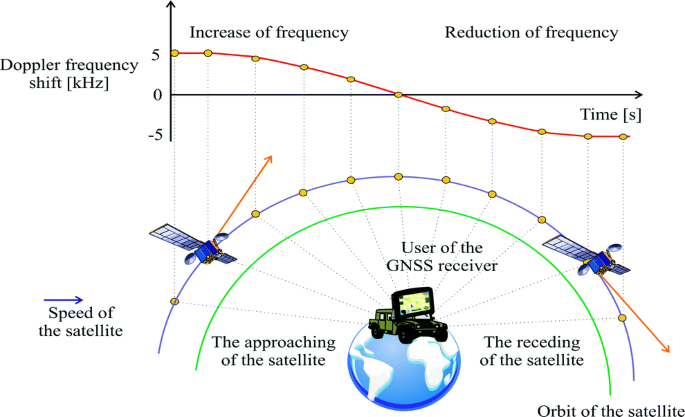

If the dashboard and a smartphone disagree, the smartphone's GNSS (Global Navigation Satellite System) data is typically the more objective reference. Unlike the car's mechanical pulse counting, GPS calculates velocity using the Doppler shift of satellite signals. This method is independent of tire wear or gear ratios. While GPS may suffer from 1Hz latency (one update per second) or 'Urban Canyon' signal bounces, its steady-state accuracy on a level road is far superior to factory instrumentation.

4. Professional Verification Protocol

To audit your vehicle's telemetry, follow this diagnostic workflow: 1. Stabilization: Engage cruise control on a level highway with a clear sky view to reach a steady-state velocity. 2. Raw Data Capture: Utilize an OBD-II automation bridge to extract the 'Raw VSS Speed' directly from the ECU. You will often find the internal ECU value is more accurate than the cluster's needle. 3. Cross-Referencing: Compare the high-refresh GPS output against the raw ECU data. The difference between these two and your dashboard reveals the specific 'Correction Factor' applied by your manufacturer.

Conclusion

Speedometers are precisely inaccurate by design. They act as a safety-oriented interface, protecting the driver from legal infractions while accounting for physical wear and tear. For mission-critical tracking or autonomous systems, the gold standard remains Sensor Fusion—reconciling high-frequency IMU data with GNSS ground truth to eliminate the inherent deceptions of the dashboard.
