Gearing Up: Are 120mph and 85 mph Speedometers Interchangeable? The Deep-Dive Technical Guide

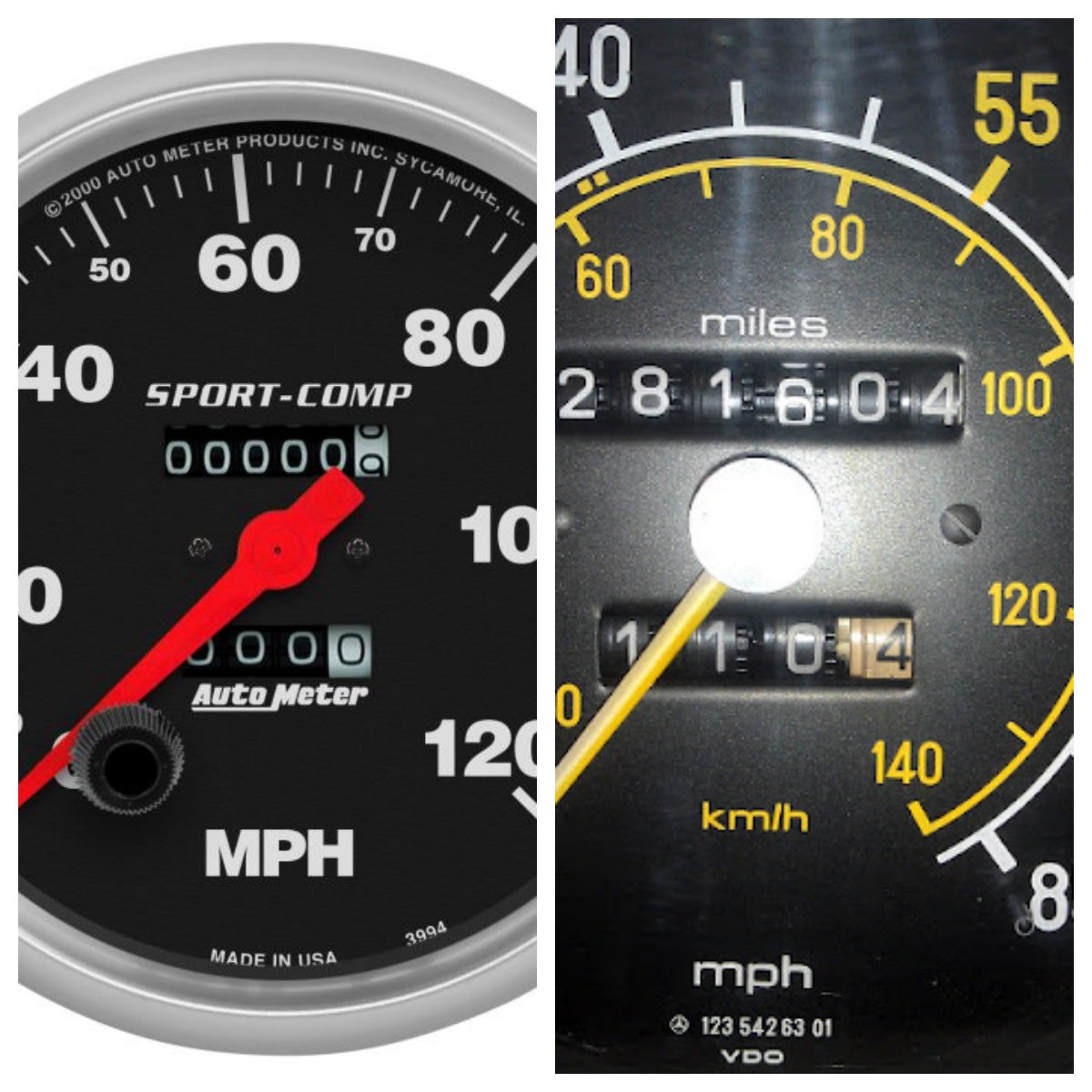

The 85 mph speedometer was a product of the 1979 NHTSA mandate. Today, enthusiasts want to swap them for 120 mph units. While physically similar, the technical reality is complex.

1. The Calibration Barrier

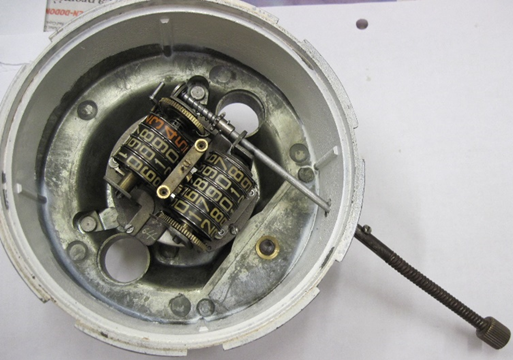

You cannot simply swap a faceplate. * Mechanical Units: 120 mph dials squeeze more numbers into the same 270-degree arc. This requires a different hairspring tension and magnet strength. Without internal recalibration, the needle will point to the wrong velocity. * Electronic Units: These function as frequency counters. The needle deflection is hardcoded. Swapping units requires adjusting the Pulse Per Mile (PPM) logic or reprogramming the EEPROM.

2. Signal Converters and Automation

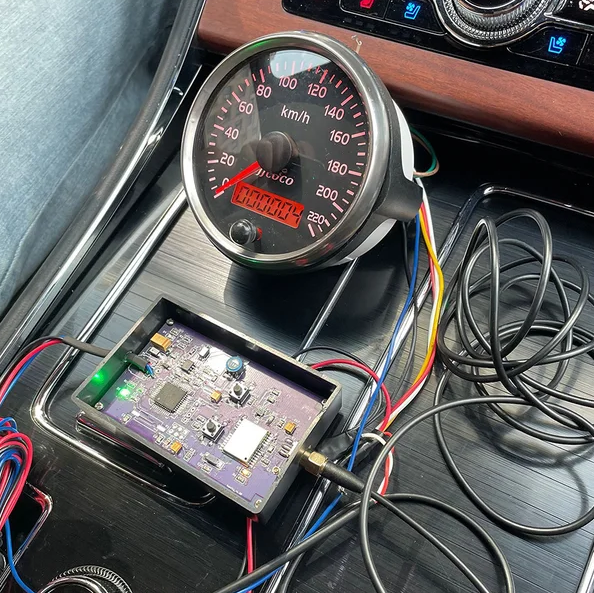

Tech-savvy restorers use programmable signal boxes to bridge the gap. By intercepting the VSS (Vehicle Speed Sensor) signal, these tools allow a 120 mph head to work with a transmission calibrated for an 85 mph sweep. This 'automation' of the signal ensures the needle reflects ground truth.

3. Swap Checklist

* Drive Type: Confirm if you have a mechanical cable or a digital wiring harness. * TPM (Turns Per Mile): Ensure the transmission gear matches the new speedometer's requirements. * Pinout Mapping: Verify the wiring harness to prevent frying the cluster circuitry.

Conclusion

Speedometer interchangeability is rarely 'plug-and-play.' It requires mastering the physics of hairsprings or the logic of digital pulses. As we move toward glass cockpits, these mechanical hurdles are fading, but for the vintage enthusiast, ensuring your needle tells the truth is the ultimate goal of any dashboard transformation.
