The Illusion of Velocity: Are Speedometers Accurate or Just ‘Close Enough’?

In vehicle telemetry, the instrument cluster is rarely a source of absolute ground truth. While drivers rely on the speedometer for legal compliance, the displayed value is a software-filtered estimation rather than a raw physical measurement. Understanding the 'Illusion of Velocity' requires an analysis of international regulatory buffers and mechanical variables.

1. The Engineering of Systematic Bias: ECE R39

Speedometer accuracy is governed by strict legal frameworks. International standards, such as UN/ECE Regulation 39, stipulate that an indicated speed must never be lower than the true speed. To avoid manufacturer liability, engineers implement a 'positive offset'—a deliberate bias where the display shows a speed higher than reality. The permitted margin can be as high as 10% + 4 km/h, meaning a dashboard indicating 75 mph may represent a true Ground Speed (SOG) of approximately 68-71 mph.

2. The Variable of Static Rolling Radius

Vehicles determine speed by sampling the rotation frequency (RPM) of the transmission output shaft or wheel hubs via Hall Effect sensors. This calculation relies on a fixed assumption of the tire's circumference. However, the 'Static Rolling Radius' is a dynamic variable influenced by:

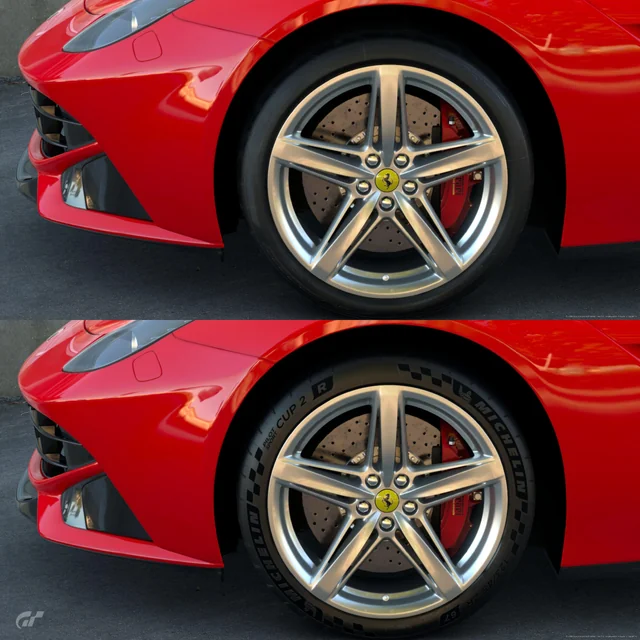

* Tread Degradation: As tires wear, the outer diameter shrinks. A smaller wheel must rotate faster to cover the same distance, forcing the ECU to report an inflated speed. * Inflation and Load: Under-inflated tires or heavy cargo loads compress the tire profile, reducing the effective radius and introducing systematic over-reading on the dash.

3. GNSS Ground Truth: Doppler Shift vs. Sensor Pulse

If the dashboard and a smartphone disagree, the smartphone's GNSS (Global Navigation Satellite System) data is typically the more objective reference. Unlike the car's mechanical pulse counting, GPS calculates velocity using the Doppler shift of satellite signals. This method is independent of tire wear or gear ratios. While GPS may suffer from 1Hz latency (one update per second) or 'Urban Canyon' signal bounces, its steady-state accuracy on a level road is superior to factory instrumentation.

4. Automation and Sensor Fusion

As we transition to Level 2/3 autonomous systems, the 'optimistic' speedometer becomes a technical liability. Modern automated vehicles utilize Sensor Fusion, reconciling raw wheel speed pulses with high-frequency IMU (Inertial Measurement Unit) data and GNSS ground truth. This creates a unified velocity vector that eliminates the inherent deceptions of the analog dashboard, ensuring precise following distances and safer lane-change maneuvers.

Conclusion

Are speedometers accurate? No—they are precisely inaccurate by design. They act as a safety-oriented interface, protecting the driver from legal infractions while accounting for physical wear and tear. For mission-critical tracking, the gold standard remains the integration of raw ECU telemetry with high-refresh satellite data.
